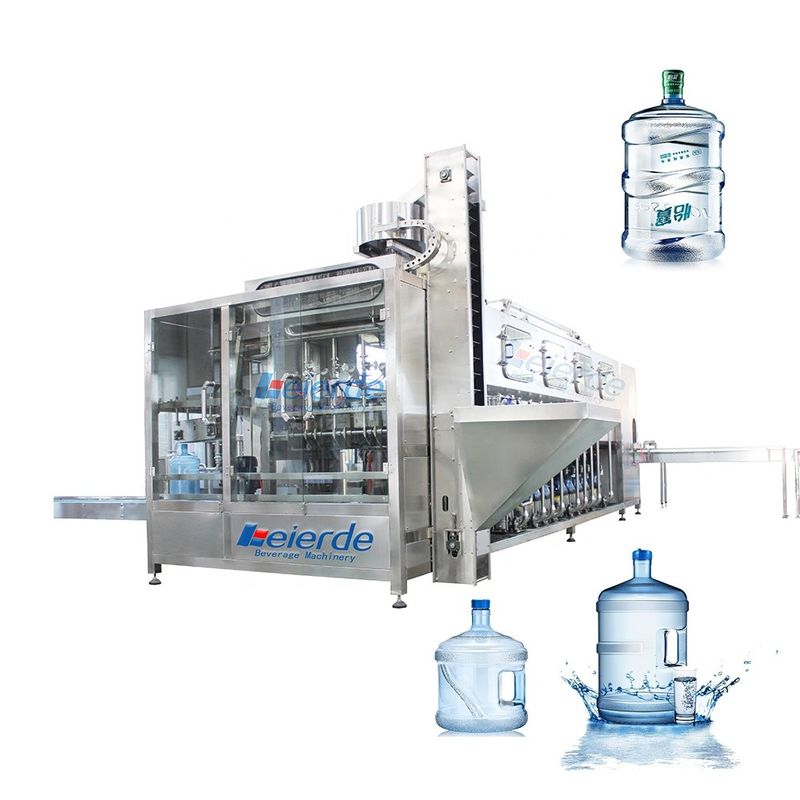

Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity
  • Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity
  • Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity
  • Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity
  • Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity
  • Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity
  • Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity

Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity

Place of Origin Jiangsu, China
Brand Name BEIERDE
Product Details
Condition:
New
Type:
Filling Machine
Machinery Capacity:
4000BPH, 12000BPH, 400BPH, 500BPH, 1000BPH, 100BPH, 200BPH
Applicable Industries:
Food & Beverage Factory
Showroom Location:
Egypt, United States, Philippines, Saudi Arabia, Bangladesh, South Africa
Application:
Beverage
Packaging Type:
Bottles
Packaging Material:
Plastic, Wood
Automatic Grade:
Automatic
Driven Type:
Mechanical
Voltage:
220V/380V
Dimension(L*W*H):
2500x500x1800
Weight:
3 KG
Warranty:
2 Years, Two Years
Key Selling Points:
Easy To Operate
Filling Material:
Water
Filling Accuracy:
±3mm
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
2 Years
Core Components:
PLC, Bearing
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Processing:
Filling Machine
Processing Type:
Water
Bottle Size:
5 Gallon
Manuacturing Tool:
CNC Milling And Lathe
Freight Cost:
Freight Insurance Including
Production Capacity:
100 To 2000 Bottles/hour
Machine Material:
Stainless Steel 304
Function:
PLC Control
Port:
Shanghai Port
Highlight:

Automatic 5 Gallon Bottle Filling Machine

,

5 Gallon Bottle Filling Machine Mineral Water

Payment & Shipping Terms
Price
$8,500.00 - $36,800.00/sets
Packaging Details
Wooden packaging
Supply Ability
68 Set/Sets per Year
Product Description

Automatic 5 Gallon Water Bottle Filling Machine for Mineral Water Plant High Capacity



Product Description

1. Water Treatment System of Beierde Brand Automatic 5 Gallon Water Filling Machine/19 liters gallon water filling machine cost



1.With high quality of super-low-pressure TFC compound RO membrance precise filter technique, the ability of getting rid of metallic ions can reach 99%. And with other filters, you can produce pure water conforming to the hygienic standard.

2.Active carbon can absorb chlorine residue 100%, protect RO membranes from damage, also gets rid of color and smell, improve the taste of pure water.

3.Water pressure protects system at all the pumps, connect the electricity source, open the water input value. When the pressure is lower than the rated voltage, the pump will stop automatically.

4. Making water soft if the hardness of original water, It will be prevent membranes from fouling and keep the flux of pure water.

5.The apparatus also has flocculants function, RO membranes stopping filth preparation, HP range regulator connected with the medicine-adding element, you can adopt any of them according to the water quality of your place.

6.With the electro conductivity monitor on the control panel, you can check the water quality at any time.

7.Safe and reliable electrical system design; With automatically flush of RO membrane. And with low-pressure-protecting system, the apparatus will start or stop according to the water level in the pure water tank connected with the apparatus.

Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity 0



 2. Beierde Brand Automatic 5 Gallon Water Filling Machine/19 liters gallon water filling machine cost



The QGF series filling processing line was designed for 3 or 5 Gallon, it was integrated washing part, filling part and capping part in one unit, in order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer. The sealer can seal caps automatically. This product is well-design and high stability. The 3/5 Gallon water filling machine including auto cap pull out machine, auto bottle insider/outsider washing, 3 in 1 washing-filling-capping machine, lamp inspection, auto bagging machine and film shrinking tunnel etc.



3. Processing of Beierde Brand Automatic 5 Gallon Water Filling Machine/19 liters gallon water filling machine cost



That is an automatic washing-filing-capping processing, from:

Start:

Step 1. Automatic cap pull out

Step 2. Automatic outside bottle brushing

Step 3. Automatic inside bottle brushing

Step 4. Moving washing-filling- capping machine--------up bottles

Step 5. Washing (using raw water, Iye and sterile water)

Step 6. Filling and capping

Step 7. Lamp check

Step 8. Auto bagging machine

Step 9. Film Shrinking Tunnel



Finish.

Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity 1

4. Product Specification



Model Production Capacity Total Power(KW) Dimension
QGF-100 Max 120BPH 2.8 2500x900x1445
QGF-300 Max 300BPH 3.3 3000x1350x1560
QGF-450 Max 450BPH 4.5 3500x1400x1560
QGF-600 Max 600BPH 5.7 4500x3000x1760
QGF-900 Max 900BPH 6.9 5000x4000x1800





5. Product Shows

1. Outside washer

Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity 2



Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity 3

2. Product Application

Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity 4



Our Services

How to enquiry and place an order?

Please write you request on email and the content as more as details you can, we would respond within 24 working hours. In particular, bottle size (250ml-1500ml), bottle material (Glass bottle, PET bottle or pop top can) and production capacity.

  • What kinds of beverage will you make?
  • How many bottles per hour are you prefer?
  • Bottle volume, Bottle material, bottle shape and the neck diameter of bottle?
  • A single machine or a whole production line?



What service BEIERDE Machinery Co.,Ltd can serve our customer?

  • Any response within 24 hour
  • Airport pick up service and Hotel Booking
  • Good after sale service
Cooperate Brand

Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity 5

Packaging & Shipping

Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity 6

Certifications

Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity 7

Company Information

A.    Company Introduction



Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity 8

Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity 9

Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity 10BEIERDE Beverage Machinery Manufacture Co,.Ltd. As the most professional Beverage (Packaging) filling machinery manufacturer in China. We guarantee our customers with an innovative, creative design concept of product. Meanwhile, BEIERDE provides users with comprehensive technical service and after-sale support.

BEIERDE Company is a professional manufacturer of beverage packaging machinery and all kinds of water treatment system, Filling machine and Packaging machine involving designing and manufacturing.

Product List:

Ø  3 in 1 Mono block Water/Fruit Juice/Carbonated Water Filling Processing Production Line.

Ø  2,000-28,000 BPH PET Bottle Water Filling Processing Production Line.

Ø  2,000-28,000 BPH PET and Glass Energy Drinks Filling Processing Line.

Ø  2,000-24,000 BPH PET and Glass Bottle Fruit Juice Filling Processing Line.

Ø  2, 000-22,000 BPH Carbonated Soft Drink Water Filling Processing Line.

Ø  2,000-16,000 BPH PET and Glass Bottle Beer Filling Processing Line.

Ø  100-1,200 Barrels BPH 3-Gallon & 5-Gallon Water Filling Processing Line.

Ø  1Ton-50Ton per hour Water Treatment System.

Ø  Semi-auto or Auto Bottle Blowing Machine.

Ø  Shrink Labeling Machine and Automatic Wrapping Machine.

Ø  Injection molding machine.

Ø  Air Purification Room.

Automatic 5 Gallon Bottle Filling Machine For Mineral Water Plant High Capacity 11
