100BPH - 1200BPH 5 Gallon Water Filling Machine 5 Gallon Water Bottling Machine
  • 100BPH  - 1200BPH 5 Gallon Water Filling Machine 5 Gallon Water Bottling Machine
  • 100BPH  - 1200BPH 5 Gallon Water Filling Machine 5 Gallon Water Bottling Machine
  • 100BPH  - 1200BPH 5 Gallon Water Filling Machine 5 Gallon Water Bottling Machine
  • 100BPH  - 1200BPH 5 Gallon Water Filling Machine 5 Gallon Water Bottling Machine
  • 100BPH  - 1200BPH 5 Gallon Water Filling Machine 5 Gallon Water Bottling Machine
  • 100BPH  - 1200BPH 5 Gallon Water Filling Machine 5 Gallon Water Bottling Machine

100BPH - 1200BPH 5 Gallon Water Filling Machine 5 Gallon Water Bottling Machine

Place of Origin China
Brand Name BEIERDE
Certification CE
Model Number QGF
Product Details
Product Name:
5 Gallon Water Filling Machine
Filling Head:
4 Pcs
Filling Volume:
3 - 5 Gallon
Guarantee Time:
1 Year
Power Supply:
380V/50Hz
Barrel Specification:
Ф270X490mm
Material:
SUS304
Highlight:

1200BPH 5 Gallon Water Filling Machine

,

100 BPH 5 Gallon Water Filling Machine

,

1200BPH 5 Gallon Water Bottling Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 6000-8000/set
Packaging Details
Seaworthy wooden cases plus wrapping film
Delivery Time
45-60Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10 Set/Sets per Month
Product Description

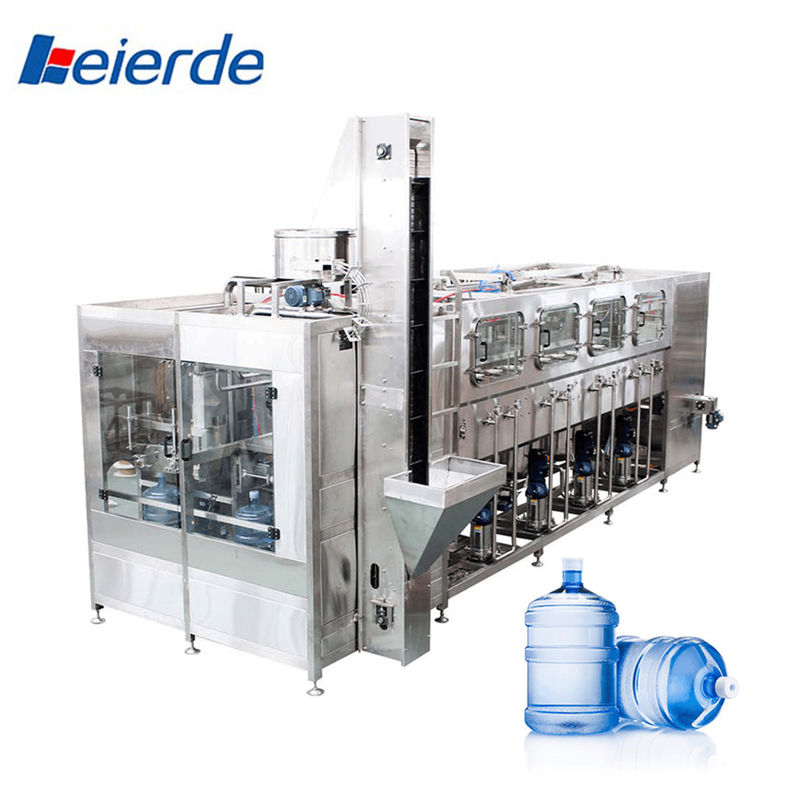

100 - 1200 Bottle Per Hour 5 gallon water filling machine



This 5 gallon water filling machine is specifically designed for the production of 5-gallon barrels of drinking water. The available barrel capacities per hour include: 100 type, 150 type, 200 type, 300 type, 450 type, 600 type, 900 type, and 1200 type. The 5 gallon water filling machine combines the functions of bottle washing, filling, and sealing into a single unit. Liquid washing and bleaching are utilized in the bottle washer to achieve multiple rounds of washing and sterilization. The washing solution can be recirculated for efficiency. The sealing process is automated to ensure the caps on the barrels are securely sealed. Additionally, a water spraying device is incorporated to sterilize the bottle caps, ensuring their aseptic and healthy condition. This production line is capable of automated barrel feeding, washing, sterilizing, filling, capping, counting, and product discharging.The 5 gallon water filling machine represents an innovative solution for the automated production of barreled water, blending mechanical, electrical, and pneumatic technologies.



NO. Items Specification
  Beverage : Water - 5 Gallon
  Capacity : 100 - 1200BPH
  Application :  used to fill water.
  Volume of PET bottle : 3 gallon or 5 gallon
  Filling temperature : 2-4
  Pressure of washing : 0.2 Mpa
  Washing consuming water : 0.5T/h
  Compressed air consumption : 0.4 M³ /Min
  Material : The main structure was built in SUS304,SUS316L.
  Standard: Sanitary standard.
Food standard.
  Certification: CE





100BPH  - 1200BPH 5 Gallon Water Filling Machine 5 Gallon Water Bottling Machine 0100BPH  - 1200BPH 5 Gallon Water Filling Machine 5 Gallon Water Bottling Machine 1




Automated operation: This 5 gallon water filling machine is usually automated and can complete the entire filling process without too much manual intervention. This improves production efficiency and reduces labor costs.



High capacity: The 5 gallon water filling machine has the characteristics of high capacity and can quickly and accurately fill 5-gallon buckets. This high-capacity design is ideal for situations where large volumes of bottled water are required, such as commercial businesses supplying flood waters or large events.



Precise metering: The 5 gallon water filling machine is equipped with a precise metering system to ensure consistent and accurate bottled water capacity. This is very important to ensure product quality and meet consumer demand.



Sterility: In order to ensure the hygiene and safety of such sterile filling water, aseptic filling machines usually use aseptic filling technology. The 5 gallon water filling machine can prevent bacteria and other zippers from entering during the filling process, keeping the water clean and hygienic.



Flexibility: 5 gallon water filling machine is also flexible and can accommodate different types and sizes of bottled water containers. This 5 gallon water filling machine can be adjusted as needed to suit different production requirements.
