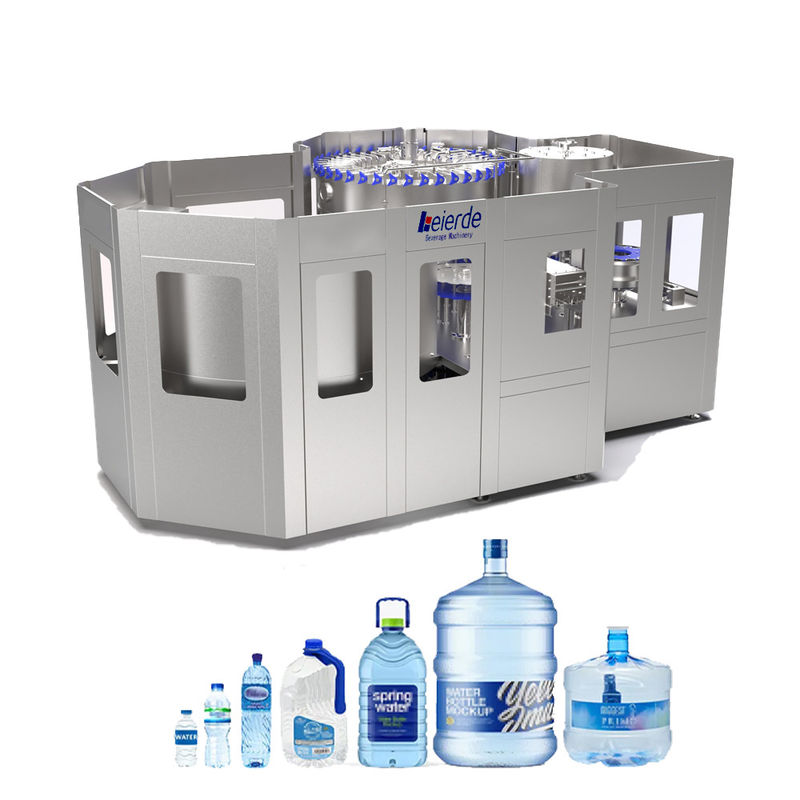

Automatic 3in1 water filling machine for mineral water pure water spring water
  • Automatic 3in1 water filling machine for mineral water pure water spring water
  • Automatic 3in1 water filling machine for mineral water pure water spring water
  • Automatic 3in1 water filling machine for mineral water pure water spring water
  • Automatic 3in1 water filling machine for mineral water pure water spring water
  • Automatic 3in1 water filling machine for mineral water pure water spring water

Automatic 3in1 water filling machine for mineral water pure water spring water

Place of Origin China
Brand Name Beierde
Model Number CGF
Product Details
Condition:
New
Touch Screen:
7 Inch
Processing Types:
Washing Filling Capping
Type:
Filling Machine
Filling Accuracy:
±1%
Bottle Types:
Round/Square/Flat
Power Consumption:
0.8KW
Suitable For:
Liquid Products
Filling Material:
Water
Warranty:
1 Year
Material:
Stainless Steel
Bottle Type:
PET Bottle
Key Selling Points:
Easy To Operate
Filling Method:
Normal Pressure Filling
Payment & Shipping Terms
Minimum Order Quantity
1
Price
15000usd/set
Packaging Details
bottle
Payment Terms
T/T
Supply Ability
15000usd 1set per month
Product Description

Product Application

This bottle water filling machine is used to produce polyester bottled mineral water, purified water, drinking water beverage machinery and other non-gas beverage machinery. This bottle water filling machine can finish all the process such as rinsing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
(1)water filling line/liquid filling line includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking
machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.
(2)The water filling line is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
(3)The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
(4)The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
(5)The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
(6)It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.
Washing part
The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe
grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again
Automatic 3in1 water filling machine for mineral water pure water spring water 0
Filling part
Long tube filling type with 2 times filling process to make sure perfect filling level
Liquid tank, filling valves, controlling rings, upgrading cylinder.
Hig
h speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made
of excellent stainless steel or food grade engineering plastic.
Automatic 3in1 water filling machine for mineral water pure water spring water 1
Capping part
Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
Automatic 3in1 water filling machine for mineral water pure water spring water 2
Main technical parameter
Model
CGF
8-8-4
CGF
14-12-5
CGF
16-16-6
CGF
18-18-6
CGF
24-24-8
CGF
32-32-10
CGF
40-40-12
Capacity(500ml/BPH)
2000
3000
4000
8000
12000
14000
16000
Suitable bottle shape and size
Both round of square bottle, 200ml-2000ml, Dia: 50-108mm, Height: 150-340mm
Compressed air pressure
0.3-0.7MPa
Bottle washing medium
Sterile water
Washing pressure
0.25MPa
Main motor
1.5
2.2
2.2
2.2
4.5
5.5
7.5
Dimension(mm)
2000*1600*2300
2200*1800*2300
2400*1900*2300
2500*2000*2300
2700*2100*2300
2970*2260*2700
3780*2800*2700
Weight(KG)
2000
2500
3000
3500
4500
6500
8500
