Home > products > Carbonated Beverage Filling Machine >

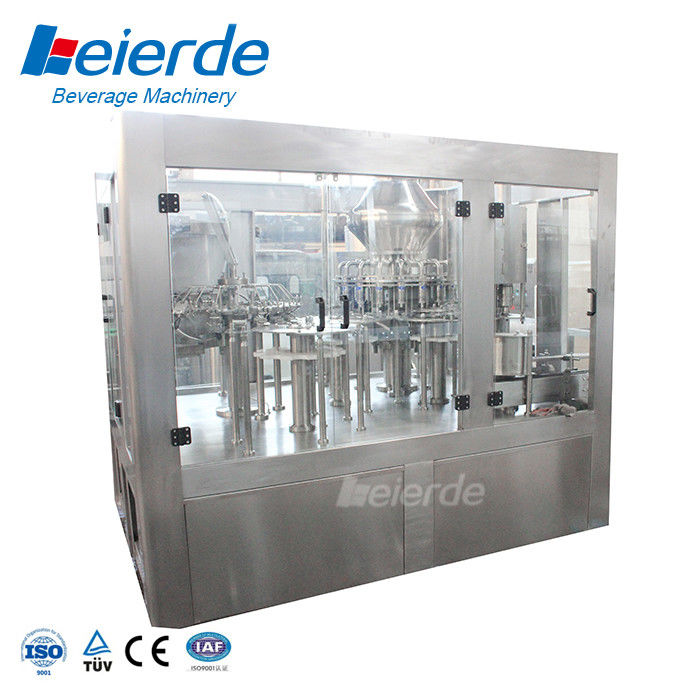

Automatic Juice Bottle Packaging Machine 4000BPH 8000BPH 12000BPH

Place of Origin	Jiangsu, China
Brand Name	beierde

Product Details

Condition:

New, New

Type:

Filling Machine

Machinery Capacity:

4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 2000BPH

Applicable Industries:

Food & Beverage Factory

Showroom Location:

Egypt, Canada, Viet Nam, Saudi Arabia, India, Kenya, South Korea, Chile, Bangladesh, South Africa, Malaysia, Australia

Application:

Beverage

Packaging Type:

Bottles

Packaging Material:

Plastic

Automatic Grade:

Automatic

Driven Type:

Electric

Voltage:

380V/220V

Dimension(L*W*H):

2000*1600*1800

Weight:

1500 KG

Warranty:

1 Year, One Year

Key Selling Points:

High-accuracy

Filling Material:

Juice

Filling Accuracy:

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Pressure Vessel, Pump, Gearbox

Monoblock:

Monoblock

Hot Filling Machine:

3in1machine

Capacity:

3000-15000bph

Material:

SS304

Processing:

Filling

Processing Types:

Juice

Advantage:

Easy Operation High Efficiency

After Warranty Service:

1 Year/12 Months

Port:

Shang Hai

Highlight:

Automatic Juice Bottle Packaging Machine

Juice Bottle Packaging Machine 4000BPH

Payment & Shipping Terms

Price

$16,000.00 - $18,000.00/sets

Packaging Details

in wooden cases

Supply Ability

10 Set/Sets per Month

Product Description

accuracy Automatic Grade Automatic Glass Drink Water Juice Bottling Filling Machine

Product Overview

Product Application
RCGF series glass bottle washing, filling and capping three in one filling machine is a kind of high filling precision and
adjustable filling speed juice with fruit pulp bottling machine. It adopts bottle bottom lifting technology. By this technology,
this machine can be used to fill all kinds of glass bottle. According to different model, capacity of the machine is in the range
of 1,000 BPH to 24,000 BPH. Machine is forced by frequency variable motor, controlled by world famous brand PLC and other
electronic components, such as Mitsubishi, Siemens, Airtac etc.

PRODUCT SPECIFICATIONS

Model	RCGF14-12-5	RCGF18-18-6	RCGF24-24-8	RCGF32-32-8
Capacity(for 500ml)	2000-4000	4000-6000	8000-10000	10000-12000
Suitable bottle shapes	PET round or square
Bottle diameter(mm)	Dia50-Dia115mm
Bottle height (mm)	160-320mm
Filling type	Overflow filinig type /Hot filling
Function	washing filling capping
Rinsing pressure	>0.06Mpa <0.2Mpa
Application	Juice / Tea drinks / Fruit Beverage
Total power (KW)	4.4kw	4.4kw	4.4kw	5.2kw
Overall dimensions	2.3*1.9m	2.3*1.9m	2.8*2.15m	3.1*2.5m
Height	2.3m	2.3m	2.6m	2.7m
Weight(kg)	3500kg	4500kg	7000kg	9500kg

Successful Project

Project in Thailand

Project in India

Project in Russia

FAQ

A1:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples
for a trial. We will test machine well for you.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 12months guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivery time is based on the exact machine you confirmed,and the bottle sample and caps should confirm by you.
Q4: How can I install my machine when it arrives?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q5: How about the spare parts?
A5: After we deal down all the things, we will offer you a spare parts list for your reference,some spare parts for free,some will
charge you the cost price.
